C&I ESS

AC Switching Cabinet

Nexus Zero

Introducing the Nexus Zero Series AC Switching Cabinet: the intelligent core of your energy ecosystem. Engineered for flawless interoperability, it seamlessly bridges your ESS-AELIO and ESS-TRENE systems to manage the critical transition between on-grid and off-grid power, ensuring uninterrupted energy flow and ultimate operational resilience.

Download

Product Advantage

Supports a maximum switching power of up to 1.25MW, it features real-time grid monitoring, immediately response to sudden faulty from grid,seamless switching. This ensures uninterrupted operation of critical loads while maintainingnormal power consumption patterns and quaranteeing the continuity of equipment operation

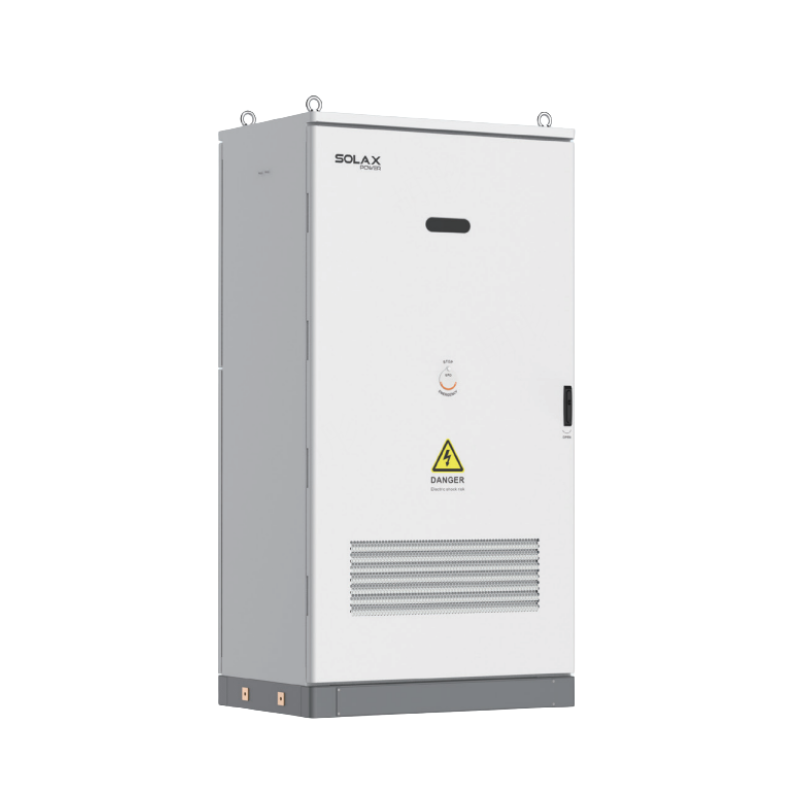

Front perspective of Nexus Zero AC Switching Cabinet

Intelligent Operation

Seamless switching between grid and off-grid
EMS 1000 PRO Inside: Seamlessly integrated, intelligent management of PV, ESS, and loads for optimal energy performance
Supports a maximum switching power of up to 1.25MW

Safer and Reliable

Load-friendly design, protects equipment from unstable grid damage
Supports Type II surge protection
Supports water ingress alerts, over-temperature warnings, and door lock status feedback

Environmental Adaptability

IP55 protection rating, suitable for both indoor and outdoor use
Supports operation in environments ranging from -30°C to 55°C
Reliable operation at 3000 meters without derating
C5-M corrosion protection standards for reliable performance in the harshest environments

Versatile Applications

Supports connection to diesel generators to ensure stable energy supply
Intelligent operation, supports multiple operation modes
Supports building on-grid/off-grid, solar-storage microgrid, and solar-storage-diesel microgrid solutions

Product Parameters

ZERO-125
ZERO-250
ZERO-500
ZERO-750
ZERO-1250

ZERO-125

SYSTEM PARAMETERS

Rated AC voltage	3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
Rated AC current@230V	181.2 A
Rated AC current@220V	189.4 A
Ingress protection	IP55
Dimension (W × H × D)	900 x 1600 x 800 mm
Weight (kg)	300 kg

ZERO-250

SYSTEM PARAMETERS

Rated AC voltage	3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
Rated AC current@230V	362.3 A
Rated AC current@220V	378.8 A
Ingress protection	IP55
Dimension (W × H × D)	900 x 1600 x 800 mm
Weight (kg)	330 kg

ZERO-500

SYSTEM PARAMETERS

Rated AC voltage	3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
Rated AC current@230V	724.6 A
Rated AC current@220V	757.6 A
Ingress protection	IP55
Dimension (W × H × D)	1200 x 2300 x 800 mm
Weight (kg)	660 kg

ZERO-750
- SYSTEM PARAMETERS

  Rated AC voltage
  3 / N / PE ,230 / 400 V
  3 / N / PE ,220 / 380 V
  Rated AC current@230V
  1087 A
  Rated AC current@220V
  1136 A
  Ingress protection
  IP55
  Dimension (W × H × D)
  1200 x 2300 x 800 mm
  Weight (kg)
  730 kg

ZERO-1250

SYSTEM PARAMETERS

Rated AC voltage	3 / N / PE ,230 / 400 V 3 / N / PE ,220 / 380 V
Rated AC current@230V	1811.6 A
Rated AC current@220V	1893.9 A
Ingress protection	IP55
Dimension (W × H × D)	1900 x 2300 x 1200 mm
Weight (kg)	1500 kg
