Residential ESS
X-MS 2700
-
All-In-One Balcony ESS
This all-in-one balcony energy storage system offers a powerful, plug-and-play solution designed for micro home energy solution. With up to 2400W solar input across 4 MPPTs and scalable battery capacity expandable to 16kWh, it combines ultra-fast installation, reliable off-grid capability, and intelligent energy management.
Product Advantage
Perfect for balconies, this compact micro-storage system captures abundant solar energy (up to 2400W via 4 MPPTs) and stores it efficiently, enabling self-consumption of clean power, slashing electricity bills, and providing backup power in under 10ms—all within a space-saving, IP65-rated, plug-and-play design.
Power & Performance
Up to 2400W solar input with 4 MPPTs
Max charging power 3400W
UPS-level switchover time <10ms
Long-lasting power with 6000 charge cycles
System Design & Installation
All-in-one compact design, plug-and-play installation

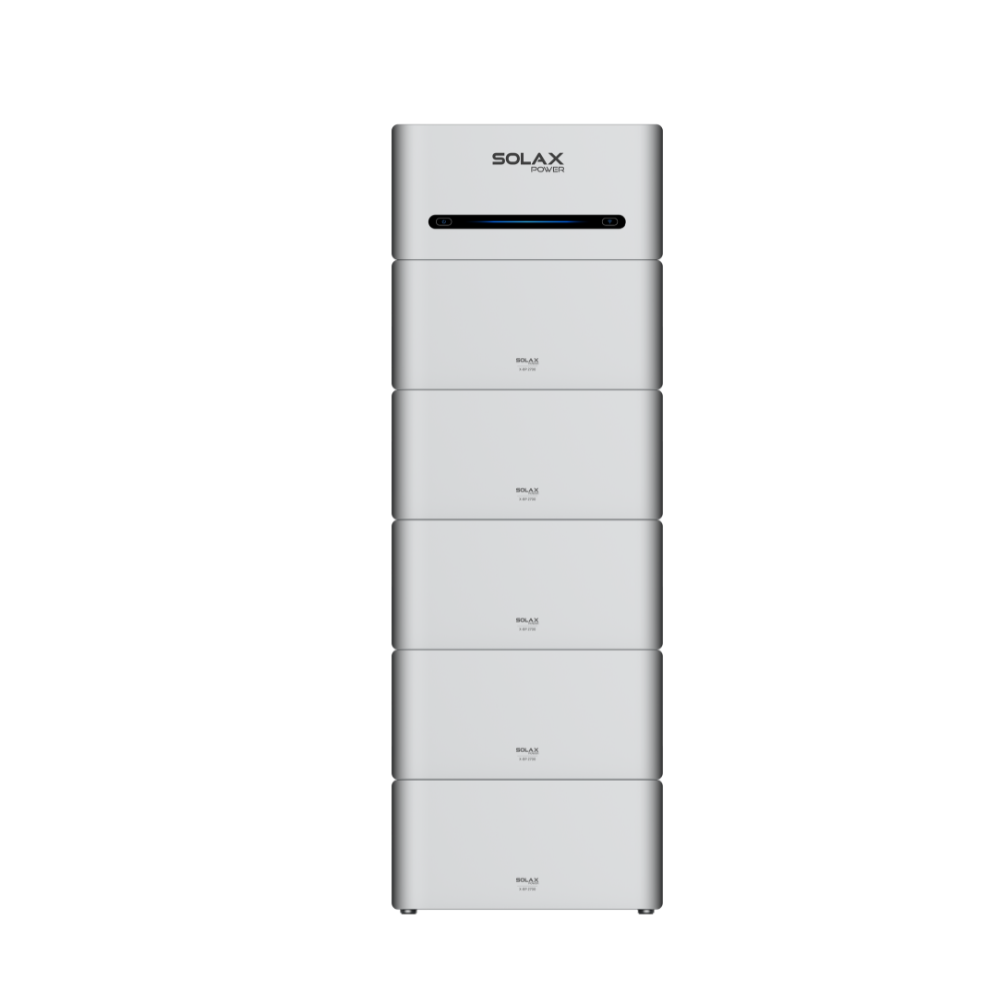

DIY expansion to 16 kWh capacity
Environmental Resilience
IP65 ingress protection
Built-in battery heating function, reliable performance in extreme temperature (-20°C)
Efficiency & Sustainability
Zero waste with self-consumption
Support TOU mode to maximize family benefits
Product Parameters
-
X-MS 2700-
PV INPUT
Max. PV input power
2400 W
Max. PV input voltage
60 V
Operation voltage range
16 ~ 60 V
No. of MPP trackers
4
-
AC ON-GRID
Rated Input / output apparent power
800 VA
* It can be customized by using the SolaX App and can be adjusted up to 1000 VA
Rated AC output voltage
220 V / 230 V / 240 V
-
BATTERY DATA
Battery type
LFP
-
GENERAL
Ingress protection IP65 Dimensions (W x H x D)
480 x 240 x 240 mm
Net Weight 26.3 kg
-
STANDARD
Safety
IEC62109-1 / -2
EMC IEC62619, UN38.3, IEC / EN 61000-6-1, IEC / EN 61000-6-2, IEC / EN 61000-6-3, IEC / EN 61000-6-4，CE-RED
-
