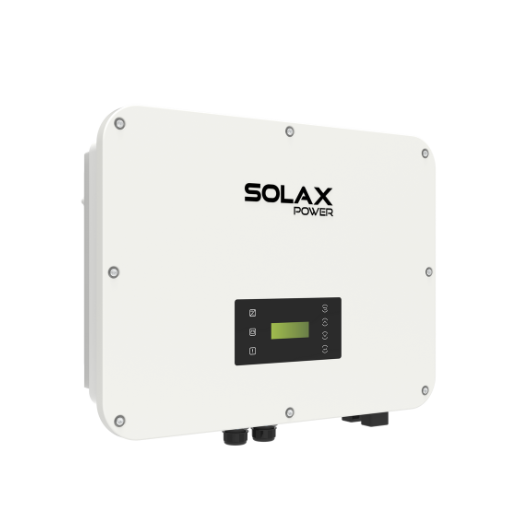

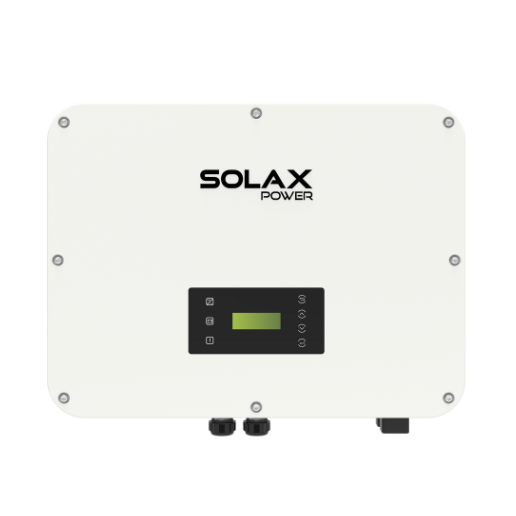

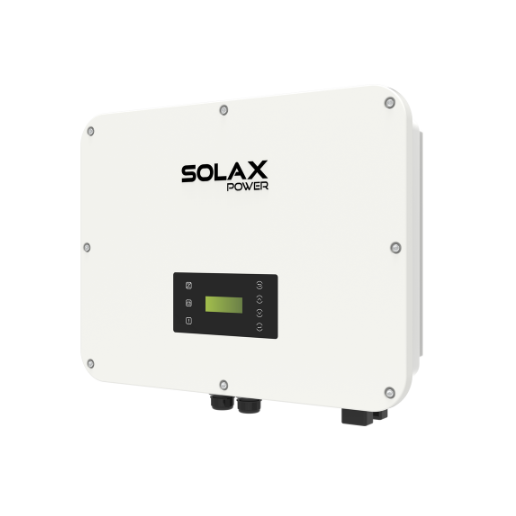

Inverter Ibrido Trifase

X3-ULTRA

15kW / 19.9kW / 20kW / 25kW / 30kW

L'X3-ULTRA offre massima flessibilità, supportando fino a 10 unità in parallelo per sistemi on-grid e off-grid. I 36 A per MPPT consentono l'utilizzo di moduli FV ad alta potenza.

Guarda il video
Download

Vantaggio del prodotto

Supporta 200% di sovradimensionamento FV e integra funzioni avanzate di microgrid, permettendo l'alimentazione degli inverter string tramite FV o batteria anche in assenza di rete.

Con 2/3 MPPT, garantisce la tolleranza ai guasti e massimizza la produzione di energia.

Contattaci

Assured Reliability

IP66 protection degree
Type II SPD on AC&DC side
Optional AFCI protection(Standard in Brazil)

Flexible Adaptability

Max. 10pcs parallel for on-grid and off-grid
Microgrid and generator function for versatile operations
Max. 36A PV input per MPPT, optimized for high-power solar panel

High Performance

200% PV oversizing and up to 110% AC output
200% EPS overload for 10s
Max. 60A charging / discharging current
Low start-up voltage for more power generation

Smart Management

Single unit UPS-level switchover time<10ms
Built-in shadow tracking
Smart loads management(e.g., heat pump, smart EV charger)
Loads respond time within 0.3 s
VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)*

Product Parameters

X3-ULT-15K
X3-ULT-15KP
X3-ULT-19.9K
X3-ULT-20K
X3-ULT-20KP
X3-ULT-25K
X3-ULT-30K

X3-ULT-15K
- PV INPUT

  Max. recommended PV array power 30000 Wp
  Operating voltage range
  120 - 950 d.c. V
  No. of MPP. trackers / Strings per MPP tracker
  2 / (2 / 2)
  Max. input current per MPPT 36 / 36 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  15000 VA (AS4777 14999 VA)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 46 kg
X3-ULT-15KP
- PV INPUT

  Max. recommended PV array power 30000 Wp
  Operating voltage range
  120 - 950 d.c. V
  No. of MPP. trackers / Strings per MPP tracker
  3 ( 2 / 2 / 2 )
  Max. input current per MPPT 36 / 36 / 36 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  15000 VA (AS4777 14999 VA)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47.5 kg
X3-ULT-19.9K
- PV INPUT

  Max. recommended PV array power 40000 Wp
  Operating voltage range
  120 - 950 d.c. V
  No. of MPP. trackers / Strings per MPP tracker
  2 / (2 / 2)
  Max. input current per MPPT 36 / 36 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  19999 VA
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 46 kg
X3-ULT-20K
- PV INPUT

  Max. recommended PV array power 40000 Wp
  Operating voltage range
  120 - 950 d.c. V
  No. of MPP. trackers / Strings per MPP tracker
  2 / (2 / 2)
  Max. input current per MPPT 36 / 36 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  20000VA
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 46 kg
X3-ULT-20KP
- PV INPUT

  Max. recommended PV array power 40000 Wp
  Operating voltage range
  120 - 950 d.c. V
  No. of MPP. trackers / Strings per MPP tracker
  3 ( 2 / 2 / 2 )
  Max. input current per MPPT 36 / 36 / 36 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  20000VA
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47.5 kg
X3-ULT-25K
- PV INPUT

  Max. recommended PV array power 50000 Wp
  Operating voltage range
  120 - 950 d.c. V
  No. of MPP. trackers / Strings per MPP tracker
  3 ( 2 / 2 / 2 )
  Max. input current per MPPT 36 / 36 / 36 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  25000 VA ( VDE4105 24900 VA )
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 48.5 kg
X3-ULT-30K
- PV INPUT

  Max. recommended PV array power 60000 Wp
  Operating voltage range
  120 - 950 d.c. V
  No. of MPP. trackers / Strings per MPP tracker
  3 ( 2 / 2 / 2 )
  Max. input current per MPPT 36 / 36 / 36 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  30000 VA ( AS4777 29999 VA, VDE4105 29900 VA)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 48.5 kg

Download

Manuale utente

Italiano

Nome del file

Lingua

Formato

Dimensione

Ultimo aggiornamento

Download

Prodotti Correlati

TSYS-HS51

10.2-66.5kWh | LFP | HV

Scopri di più

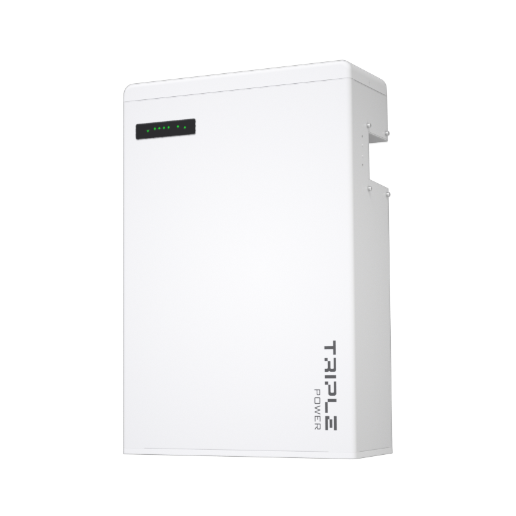

T-BAT-SYS-HV-S3.6
