Battery Accessories

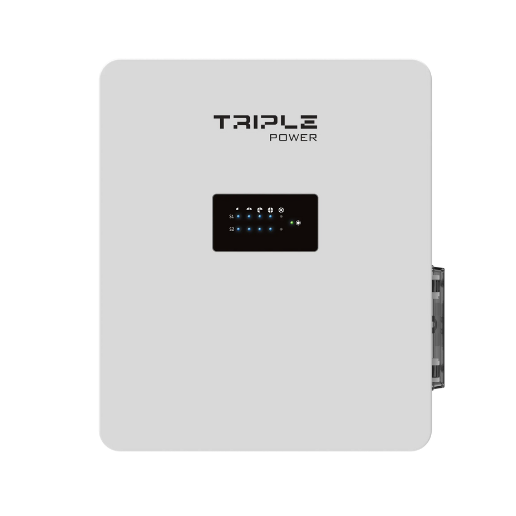

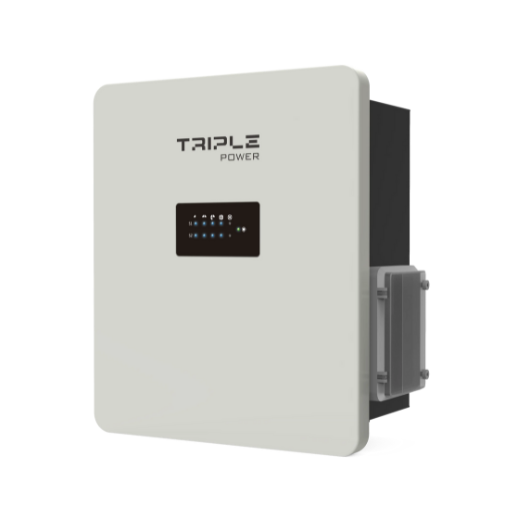

BMS-Parallel Box-II G2

Compatible with T-BAT-SYS-HV-3.0, T-BAT-SYS-HV-5.8

Compatible with T-BAT-SYS-HV-3.0 and T-BAT-SYS-HV-5.8 models, it supports two-column parallel configurations, enabling seamless scalability for ESS applications. This smart layout optimizes inverter capacity usage while minimizing system complexity.

Guarda il video
Download

Product Advantage

Engineered to optimize energy output, the BMS Parallel Box-II G2 effortlessly expands battery capacity and prolongs battery lifespan. By supporting parallel connection of two battery strings, it enhances ESS (Energy Storage System) performance with greater operating efficiency and longer runtime.

Reliable Performance

Easily expand capacity
Extend battery lifespan

Flexible Adaptability

Support two-column parallel connection
Support T-BAT-SYS-HV-3.0, T-BAT-SYS-HV-5.8

Product Parameters

BMS-PARALLEL BOX-II G2

BMS-PARALLEL BOX-II G2
- GENERAL

  Dimensions (W x H x D) 368 x 334 x 153.5 mm
  Weight 8.7 kg
  Expected life 5 years
  Protection IP65
- ENVIRONMENT REQUIREMENT

  Input / Output voltage range 70 ~ 550 V
  Standard power 11.5 kW
  Maximum power 16.1 kW
- CERTIFICATION

  Safety IEC / EN 62477-1, IEC / EN 61439-1, IEC / EN 61439-2
  EMC EN 61000-6-1 / 2 / 3 /4
