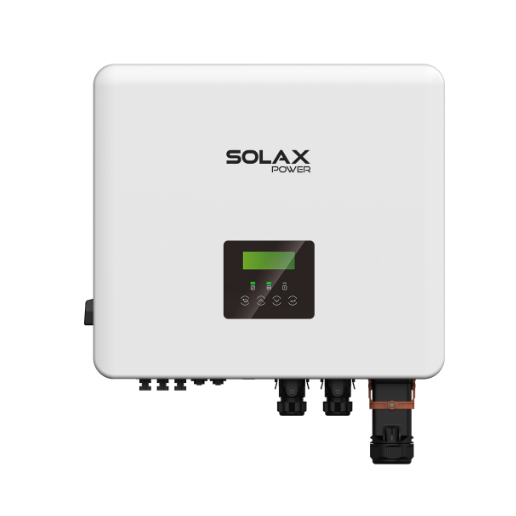

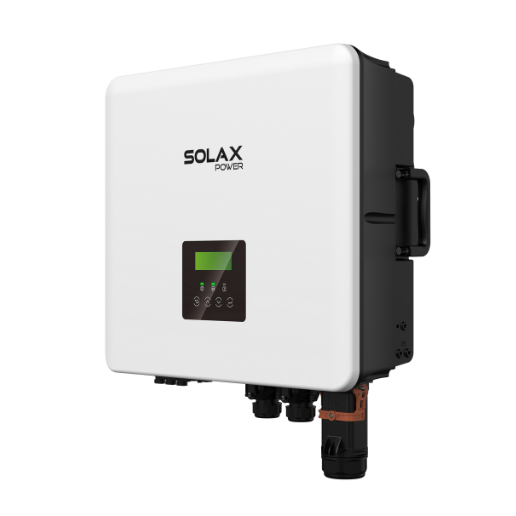

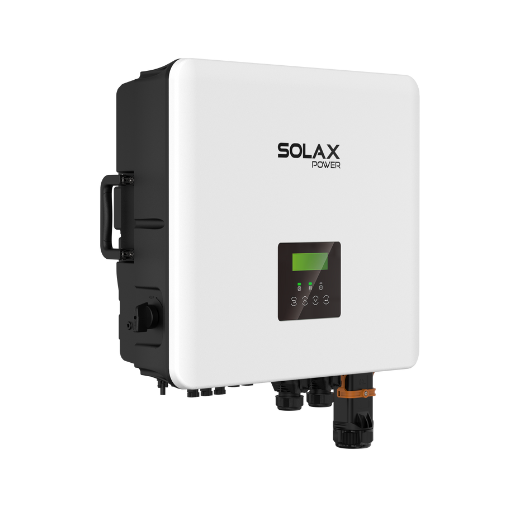

Hybrid Inverter

X3-HYB-G4 PRO

4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW

The SolaX X3-HYBRID G4 PRO inverter features a triple MPPT system with 20A input per tracker and a wide 110–950V voltage range, maximizing solar yield across diverse installations. Equipped with V2X readiness, intuitive controls, and full VPP compatibility, it’s built for tomorrow’s energy needs.

Guarda il video
Download

Product Advantage

Its robust input architecture handles up to 200% PV input and supports unbalanced three-phase loads up to 5kW per phase. Dual battery ports and a 2-in-1 expansion function offer flexible storage configurations, while additional wiring ports and a sleek wiring cover ensure streamlined, professional installations.

High Performance

20A DC input per MPPT with 3 trackers
200% PV oversizing and up to 110% AC output
Ultra-wide MPPT range of 110-950V

Smart Management

V2X ready for smart home energy integration *Feature to be upgraded in the future
Smart Schedule, Smart Scene, and 7*24h ToU
Wireless meter compatibility
VPP ready with a variety of compatibility(OpenADR, IEEE2030.5, FCAS, API)

Flexible Adaptability

Dual battery ports & 2-in-1 function for expansion

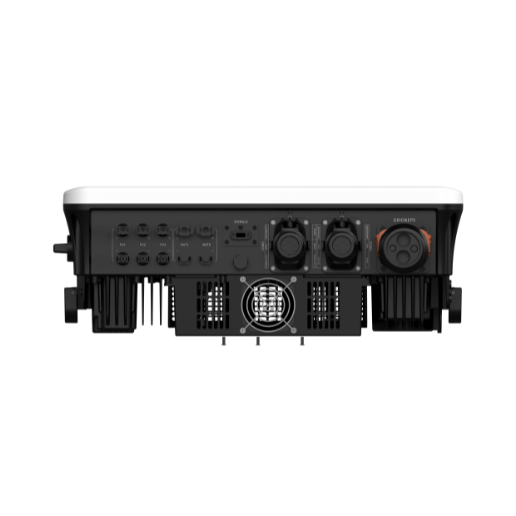

Additional ports for simplified wiring and installation
Functional and stylish wiring cover
Microgrid and generator modes for versatile operations

Assured Reliability

Up to 200% EPS output for 10s
UPS-level switchover time<10ms
Optional Rapid Shutdown function for enhanced safety
Type II SPD on AC&DC side
Optional AFCI protection*

Product Parameters

X3-HYB-4.0-P
X3-HYB-5.0-P
X3-HYB-6.0-P
X3-HYB-8.0-P
X3-HYB-10.0-P
X3-HYB-12.0-P
X3-HYB-15.0-P

X3-HYB-4.0-P
- PV INPUT

  Max. recommended PV array power 8 kWp
  Operating voltage range
  110 - 950 d.c. V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 20 / 20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  4000 W
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-5.0-P
- PV INPUT

  Max. recommended PV array power 10 kWp
  Operating voltage range
  110 - 950 d.c. V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 20 / 20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  5000 W (AS 4777 4999 W)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-6.0-P
- PV INPUT

  Max. recommended PV array power 12 kWp
  Operating voltage range
  110 - 950 d.c. V
  No. of MPP. trackers / strings per MPPT 2(1/1)
  Max. input current per MPPT 20 / 20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  6000 W
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-8.0-P
- PV INPUT

  Max. recommended PV array power 16 kWp
  Operating voltage range
  110 - 950 d.c. V
  No. of MPP. trackers / strings per MPPT 3 ( 1 / 1 / 1 )
  Max. input current per MPPT 20 / 20 /20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  8000 W
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-10.0-P
- PV INPUT

  Max. recommended PV array power 20 kWp
  Operating voltage range
  110 - 950 d.c. V
  No. of MPP. trackers / strings per MPPT 3 ( 1 / 1 / 1 )
  Max. input current per MPPT 20 / 20 /20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  10000 W (AS 4777 9999 W)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-12.0-P
- PV INPUT

  Max. recommended PV array power 24 kWp
  Operating voltage range
  110 - 950 d.c. V
  No. of MPP. trackers / strings per MPPT 3 ( 1 / 1 / 1 )
  Max. input current per MPPT 20 / 20 /20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  12000 W
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
X3-HYB-15.0-P
- PV INPUT

  Max. recommended PV array power 30 kWp
  Operating voltage range
  110 - 950 d.c. V
  No. of MPP. trackers / strings per MPPT 3 ( 1 / 1 / 1 )
  Max. input current per MPPT 20 / 20 /20 d.c. A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output apparent power
  15000 W (AS 4777 14999 W)
  Rated AC voltage
  3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 560x503x210 mm
  Net Weight 38 kg
