C&I EV Charger

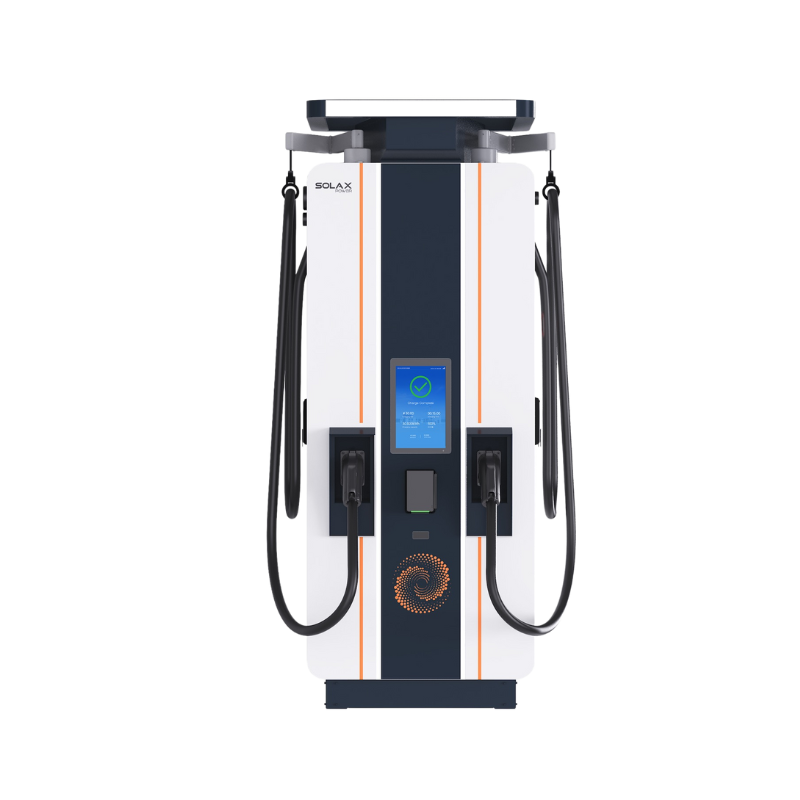

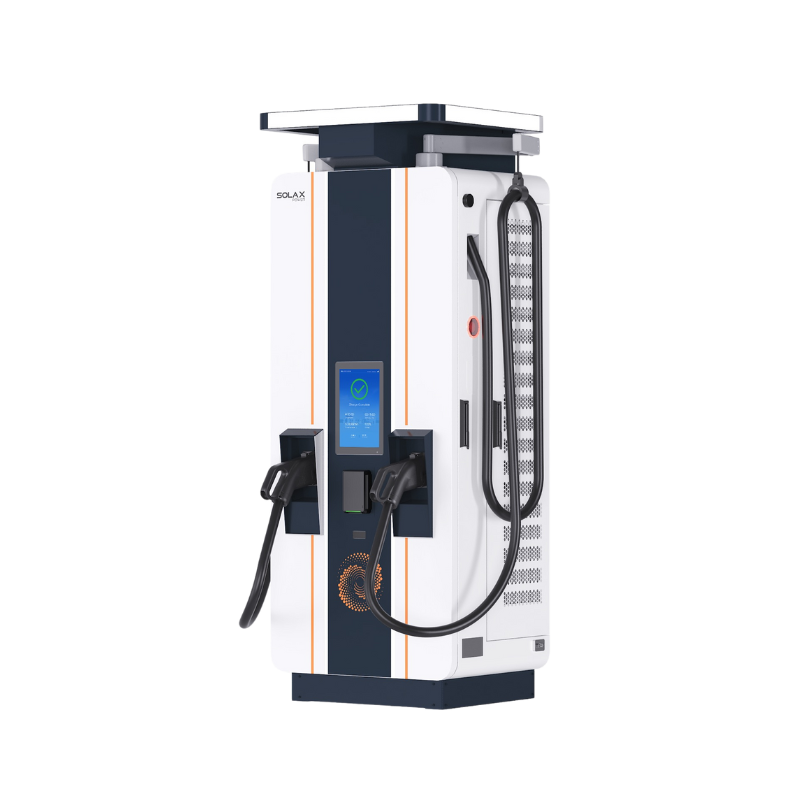

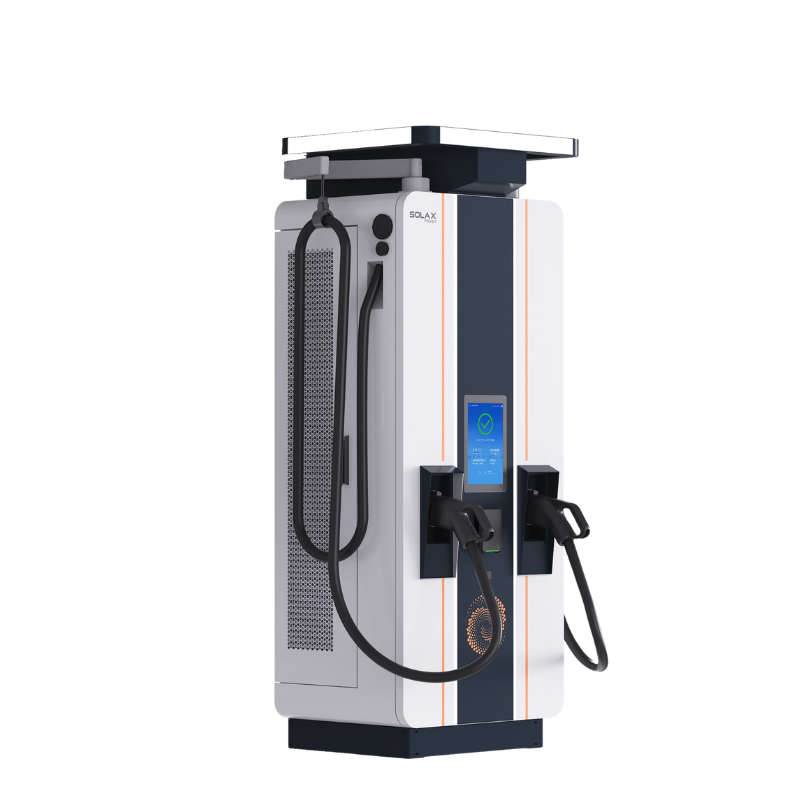

Fast DC Charger
-
120kW/180kW/240kW/300kW/360kW
This fast DC charger features an all-in-one structure with flexible installation options, making ideal for a wide range of applications. The 12.1-inch high-contrast HMl display enhances user experience, and ensures seamless integration and easy operation.
Product Advantage
By combining dynamic EMS power control with a full PV-ESS-EV solution, this charger inteligently balances energy usage, minimizes peak load impact, and adapts to real-time EV demand.
Supporting a wide voltage range (200-1000V), it maximizes green energy use, and reduces energy costs-making it the ideal choice for sustainable charging infrastructures.
Flexible Adaptability
All-in-one design, easy and quick installation, compact and lightweight structure can be flexibly installed in various positions.
The voltage range of 200-1000V is suitable for all current mainstream charging scenarios.
High Efficiency
Intelligently distribute charging power to meet the charging needs of different EVs.
Support EMS intelligent dynamic power control, and form an integrated PV-ESS-EV Solution.
Assured Safety
Safe and reliable, with multiple fault protection.
Equipped with cable management system to enhance user experience.
Intelligent Design
Support OCPP1.6J protocol to access third-party operation platform.
Support multiple network communication (Ethernet / Wi-Fi / 4G).
Integrated smart HMI: 12.1-inch high-contrast LCD.
Product Parameters
-
FDC-120-
AC NOMINAL INPUT
Voltage 400V ± 15% Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 120 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Net weight 400 kg Dimensions (W x H x D) 750 × 2000 × 600 mm
-
-
FDC-180
-
AC NOMINAL INPUT
Voltage 400V ± 15% Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 180 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Net weight 480 kg Dimensions (W x H x D) 750 × 2000 × 600 mm
-
-
FDC-240
-
AC NOMINAL INPUT
Voltage 400V ± 15% Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 240 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Net weight 530 kg Dimensions (W x H x D) 830 × 2050 × 740 mm
-
-
FDC-300
-
AC NOMINAL INPUT
Voltage 400V ± 15% Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 300 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Net weight 570 kg Dimensions (W x H x D) 830 × 2050 × 740 mm
-
-
FDC-360
-
AC NOMINAL INPUT
Voltage
400V ± 15%
Earthing system TN-S / TT -
DC NOMINAL OUTPUT
Power 360 kW -
INTERFACE
Communication Interface Ethernet / 4G / Wi-Fi -
GENERAL
Charge connector Dual（CCS2 + CCS2） Enclosure ratings IP54
Cooling method Air-cooling Net weight 610 kg Dimensions (W x H x D) 830 × 2050 × 740 mm
-
