Utility ESS
ORI
-
Liquid Cooling ESS System

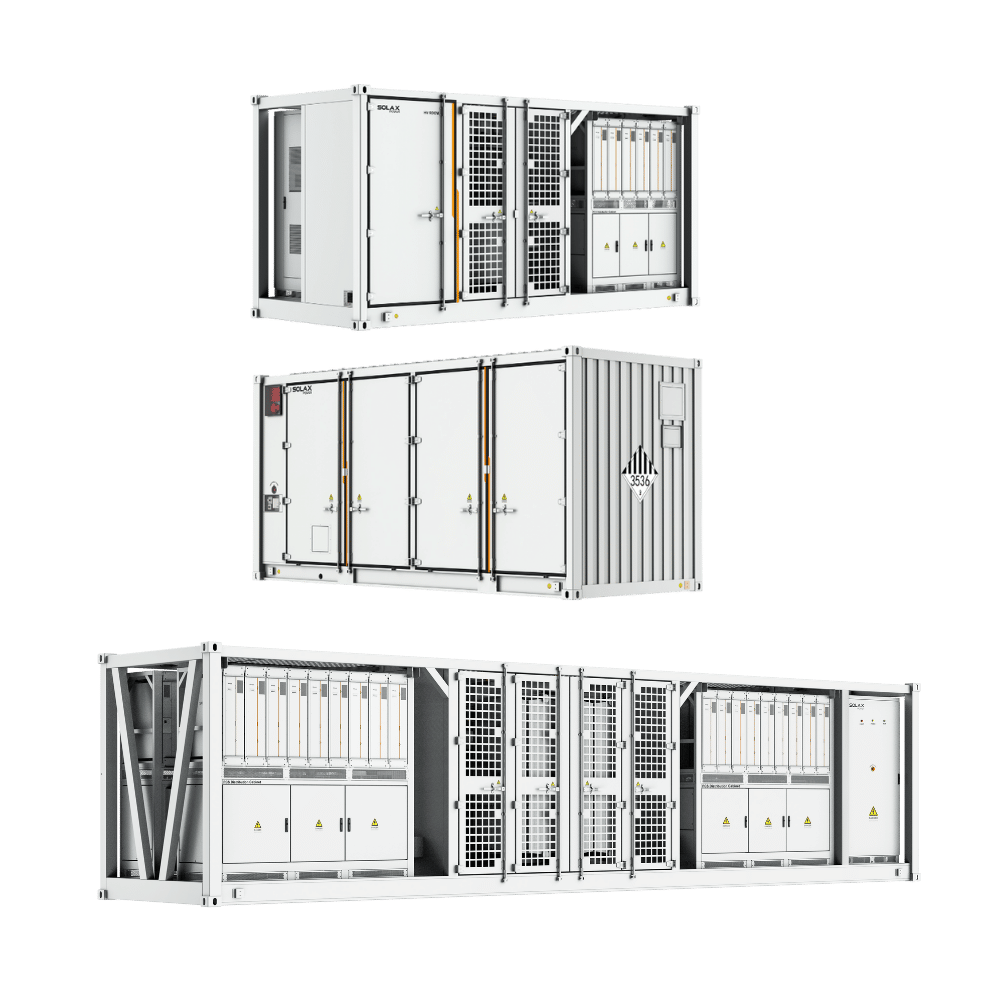

The ORI energy storage system combines a 2.5 MW PCS and a 5.015 MWh battery system with a containerized design. With high-quality LFP battery cells and advanced liquid cooling, the large-scale energy storage system ensures fast commissioning and reduced on-site installation work.
Product Advantage
It features a high-performance string PCS with a maximum efficiency of 99%, ensuring maximum energy utilization. With pre-installed components and factory pre-commissioning, the system significantly shortens on-site installation time—ideal for rapid deployment in utility-scale energy storage projects.
High Efficiency
Factory pre-assembly for rapid on-site installation
Factory pre-commissioning saving 50%+ time
Cluster-level management, +8% system available energy
Ultimate Safety
Anti-condensation design for battery pack and container
Advanced thermal and electrical isolation safeguards for secure operations and long-term ROl
4-Level breaking protection for full-link risk control
Robust Reliability
2-hour fire-rated cabinets for maximum safety assurance
IP66 for PCS and C4 anti-corrosion protection handle harsh conditions
Smart Liquid cooling control ensures ≤3°C uniformity, battery lifecycle+10%
Worry-free O&M
Intelligent BMS management with 10ms-level data monitoring
Rapid maintenance with 1-hour part replacement
Smart controller for one-click system upgrade
Product Parameters
-

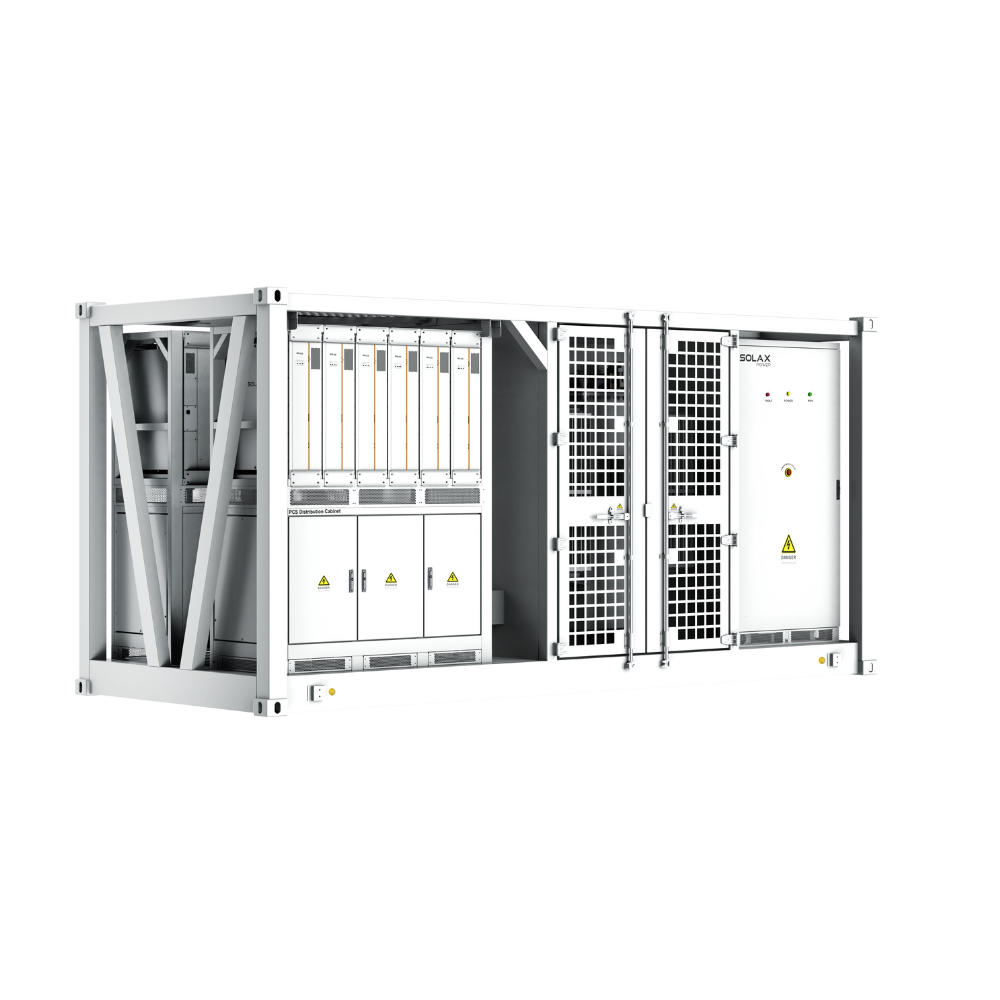

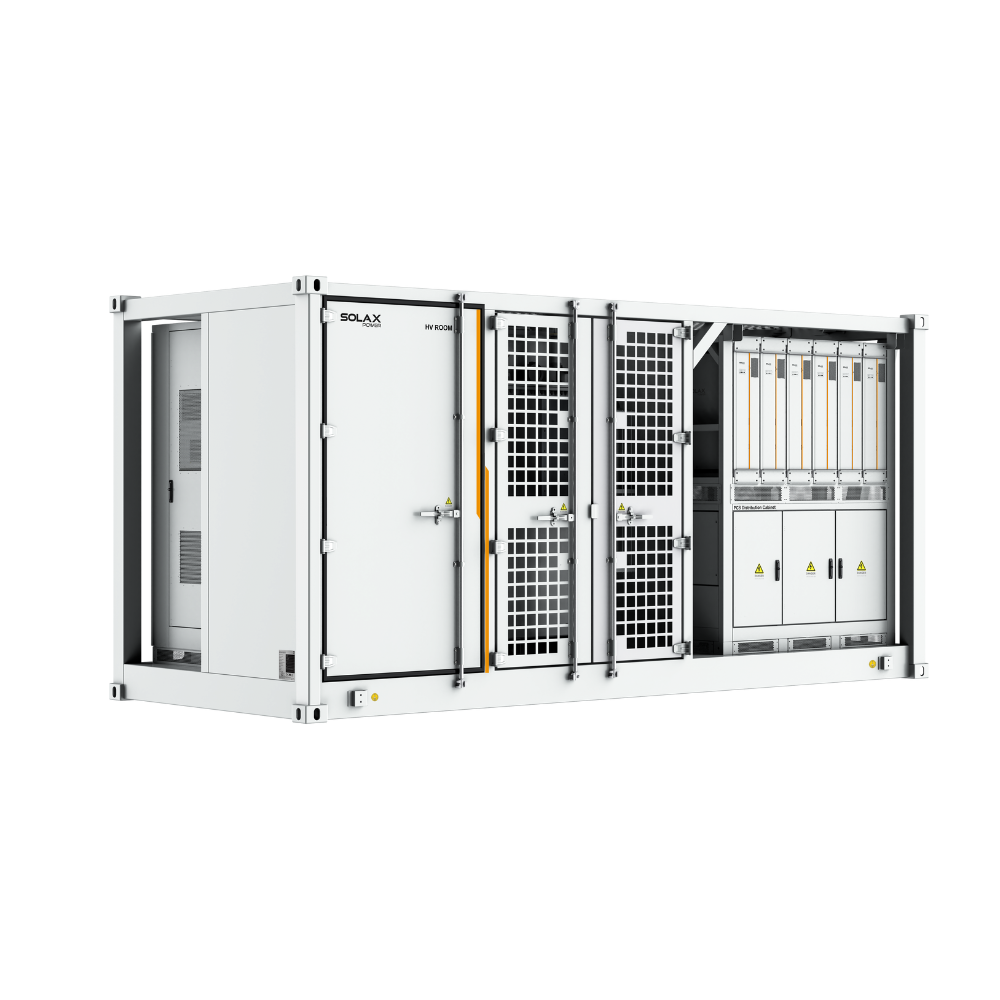

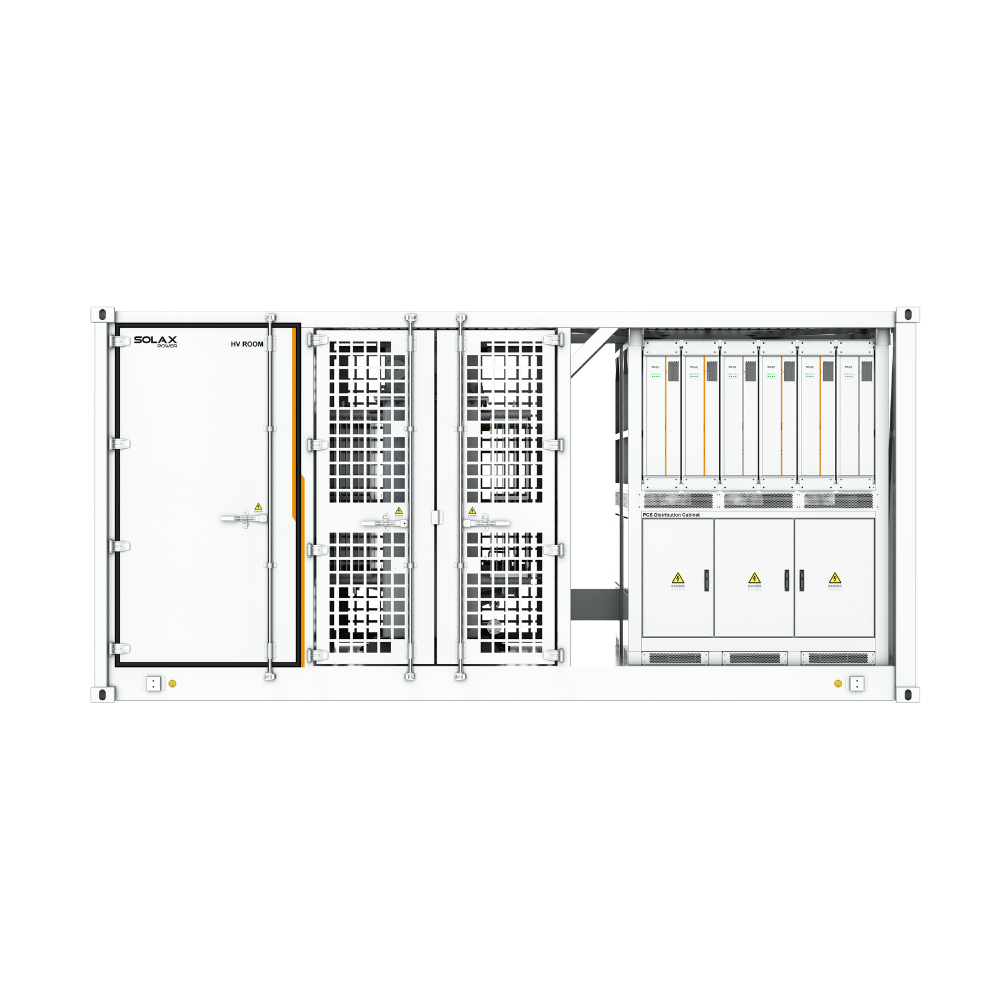

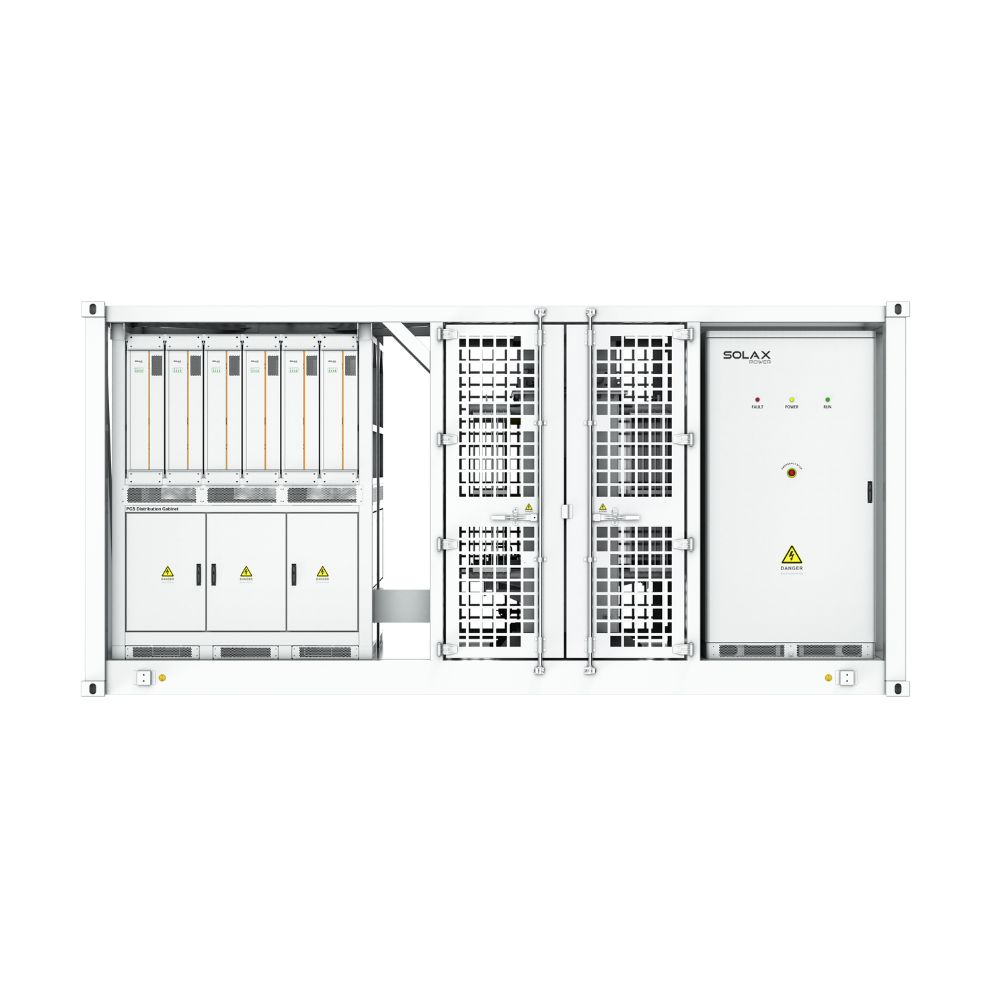

ORI-P2500-
DC SIDE
Max. DC voltage
1500 V
Rated DC power 215 kW × 12 DC voltage range 1000~1500V
-
AC SIDE
Rated AC power
2500 kVA
Rated AC voltage
6~35kV
Rated AC frequency
50 Hz
-
GENERAL
lsolation method
Oil-immersed transformer
Max. operating altitude
≤2000 m(optional: 4000m)
Dimensions (W x H x D)
6058 x2896 x2438 mm
Container weight
≤ 16 t
-
-

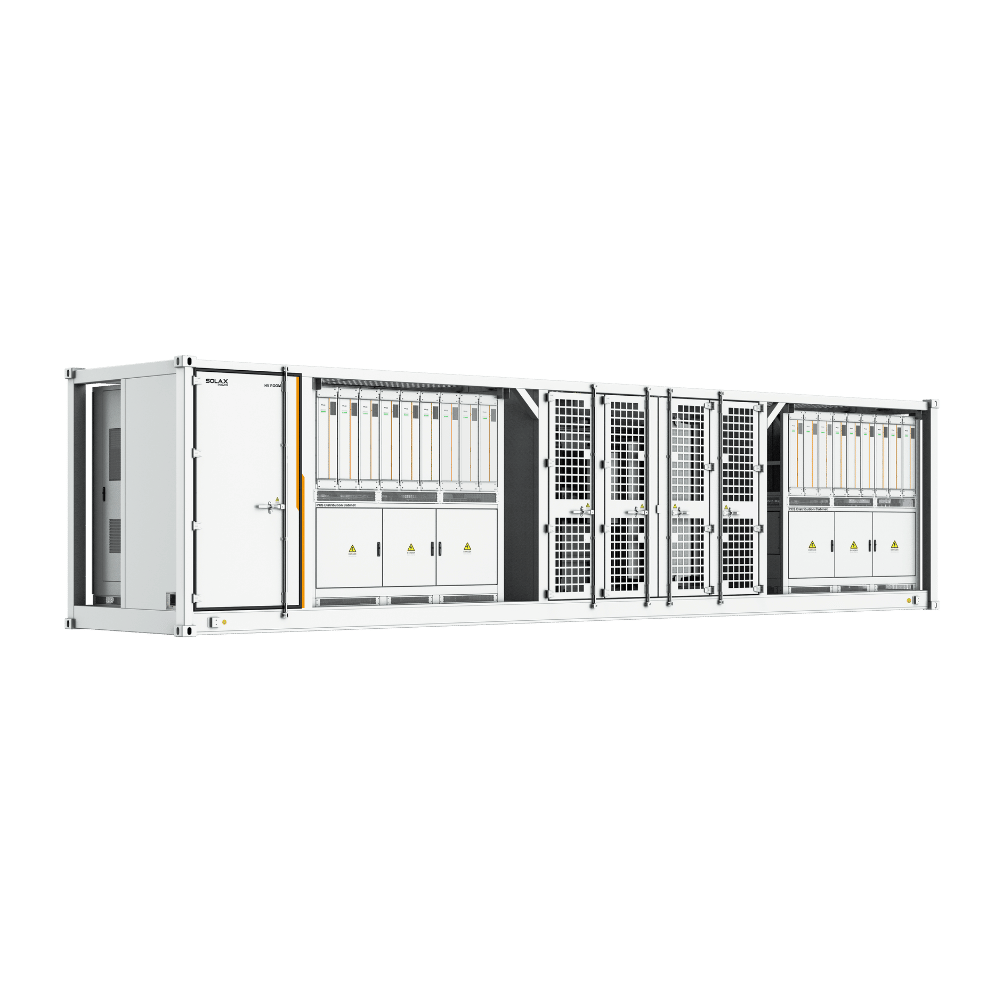

ORI-P5000
-
DC SIDE
Max. DC voltage
1500 V
Rated DC power 215 kW ×24 DC voltage range 1000 ~ 1500 V
-
AC SIDE
Rated AC power
5000 kVA
Rated AC voltage 10 ~ 35 kV -
GENERAL
Isolation method
Oil-immersed transformer
Max. operating altitude
≤ 2000 m (optional: 4000m)
Dimensions (W × H × D) 12192 × 2896 × 2438 mm Container weight ≤ 29.5 t
-
-
ORI-P7500
-
DC SIDE
Max. DC voltage
1500 V
Rated DC power 215 kW × 36 DC voltage range 1000 ~ 1500 V
-
AC SIDE
Rated AC power
7500 kVA
Rated AC voltage 10 ~ 35 kV -
GENERAL
Isolation method
Oil-immersed transformer
Max. operating altitude
≤ 2000 m (optional: 4000m)
Dimensions (W × H × D) 12192 × 2896 × 2438 mm Container weight ≤ 34.5 t
-
-

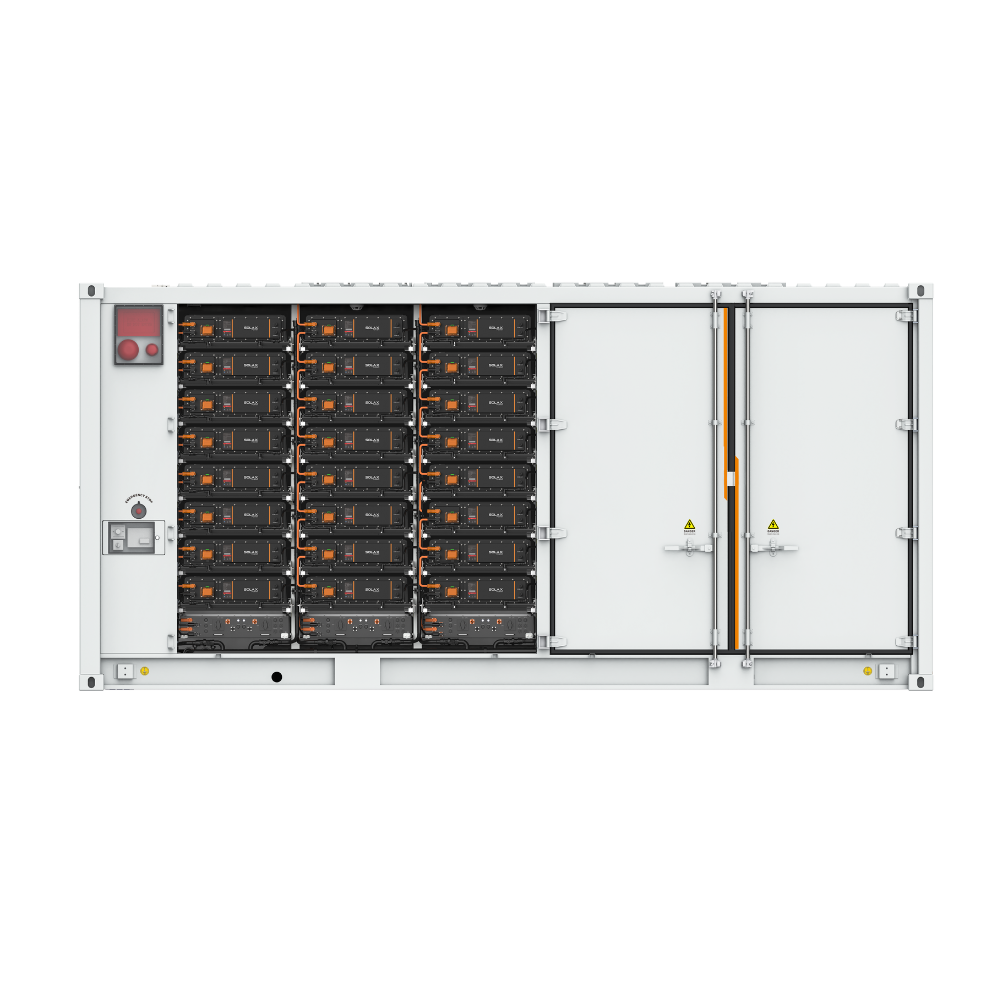

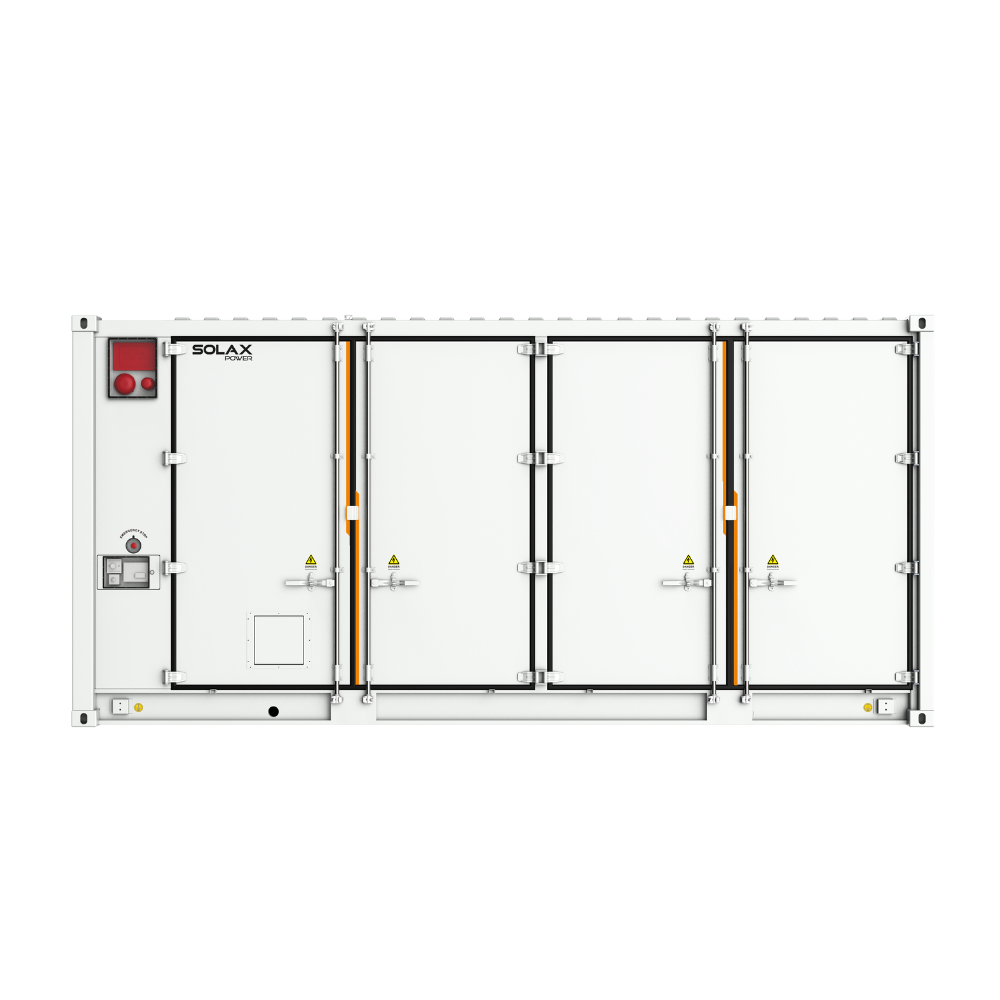

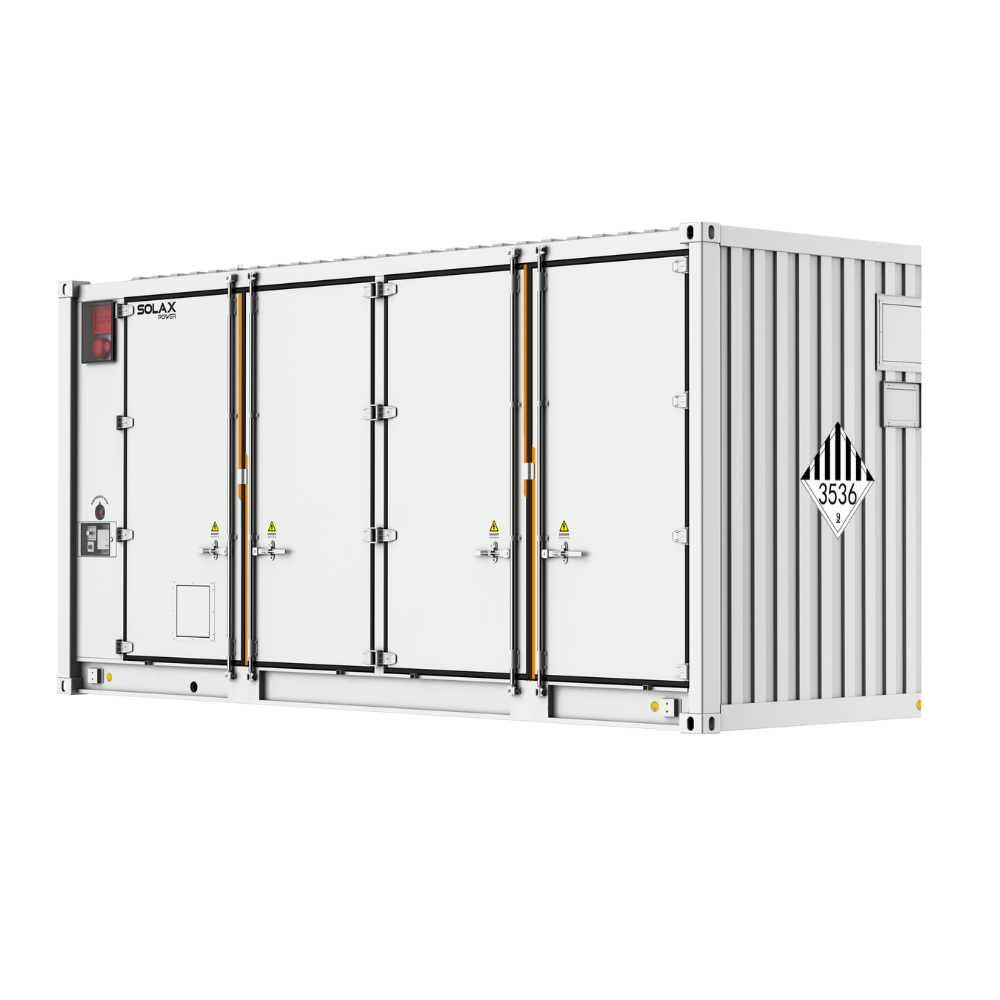

ORI-B5015L-2H
-
DC SIDE
DC rated voltage
1331.2 V
Rated energy capacity 5015 kWh Pack composition 1P416S × 12
-
GENERAL
Cooling method
Liquid cooling
Max. operating altitude
≤ 4000 m
Dimensions (W x H x D)
6058 x 2896 x 2438 mm
Container weight
≤ 43 t
-
