Microinverters

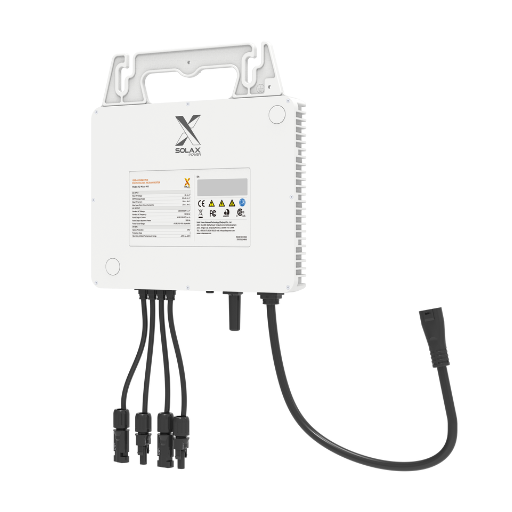

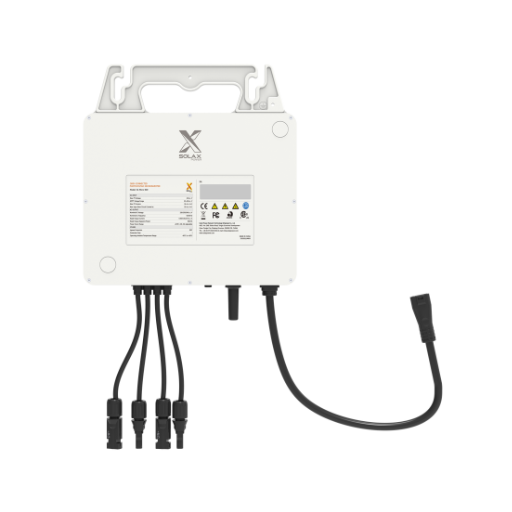

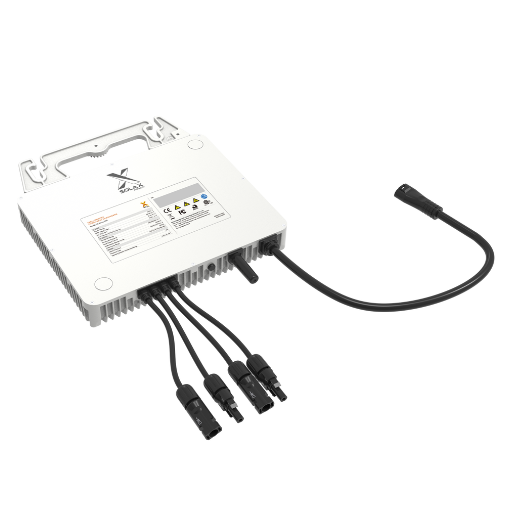

X1-Micro 2 in 1

  • 750 W / 800 W / 900 W / 1000 W / 1200 W

The SolaX X1 Micro 2-in-1 integrates a microinverter and DC isolator for simplified solar installations. With 98.6% peak efficiency, it maximizes energy harvest while supporting 700W+ panels. Features IP67 waterproofing, NEC-compliant rapid shutdown, and smart monitoring via SolaX Cloud App—delivering high-performance, module-level optimization in a compact, plug-and-play design.


Product Advantage

Delivering up to 1200VA output power with a 20A DC input current, the X1-Micro 2 in 1 sets a high standard in energy conversion efficiency. Featuring two independent MPPT channels, it maximizes solar yield across variable conditions.

Contact Us

Assured Safety

  • Rapid Shutdown function

  • Safety protection relay integrated

  • IP67 ingress protection

High Efficiency

  • Max. 1200VA output power

  • Max. 20A DC input current

  • TWO MPPT channels


Intelligent Design

  • Reactive power control

  • Built-in industrial grade WiFi module

  • Easy to install and maintain

Flexible Adaptability

  • Easy and flexible expansion of system capacity

  • Support AC coupling solution

  • Support 1-phase microinverter integration into 3-phase power grid

Product Parameters

  • X1-Micro 750
  • X1-Micro 800
  • X1-Micro 900
  • X1-Micro 1000
  • X1-Micro 1200
  • X1-Micro 750
    • PV INPUT
      Commonly used module power per input240~470+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT2 / 1


    • AC OUTPUT
      Rated AC output power750 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)260x212x40 mm
      Weight4.1 kg
      Cooling ConceptNatural cooling


  • X1-Micro 800
    • PV INPUT
      Commonly used module power per input320~540+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT2 / 1


    • AC OUTPUT
      Rated AC output power800 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)260x212x40 mm
      Weight4.1 kg
      Cooling ConceptNatural cooling


  • X1-Micro 900
    • PV INPUT
      Commonly used module power per input360~600+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT2 / 1


    • AC OUTPUT
      Rated AC output power900 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)260x212x40 mm
      Weight4.1 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1000
    • PV INPUT
      Commonly used module power per input360~600+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT2 / 1


    • AC OUTPUT
      Rated AC output power1000 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)260x212x40 mm
      Weight4.1 kg
      Cooling ConceptNatural cooling


  • X1-Micro 1200
    • PV INPUT
      Commonly used module power per input400~670+W
      MPPT voltage range22 ~ 60 V
      Number of MPP. trackers/strings per MPPT2 / 1


    • AC OUTPUT
      Rated AC output power1200 VA


    • EFFICIENCY
      Peak efficiency96.50%
      Nominal MPPT efficiency99.90%


    • GENERAL
      Ingress protection ratingIP67
      Dimensions (W /H / D)260x212x40 mm
      Weight4.1 kg
      Cooling ConceptNatural cooling
