Residential Batteries

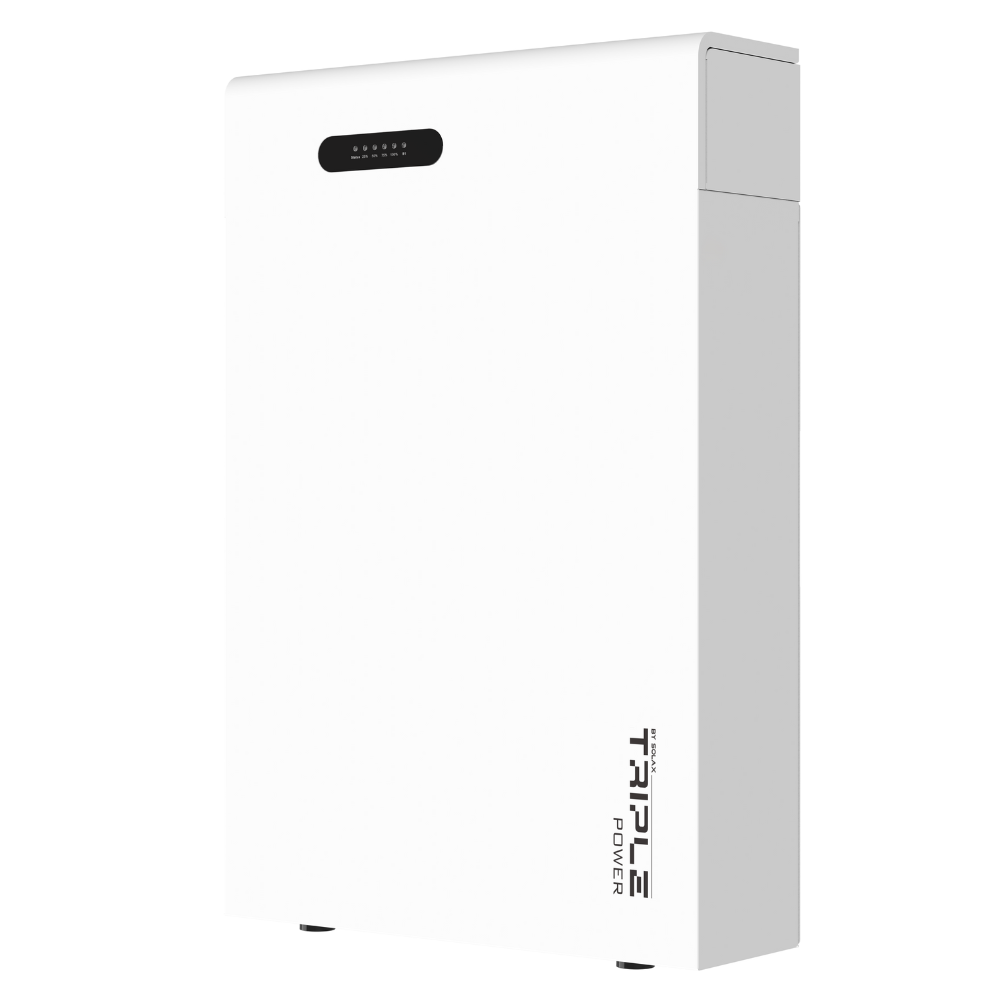

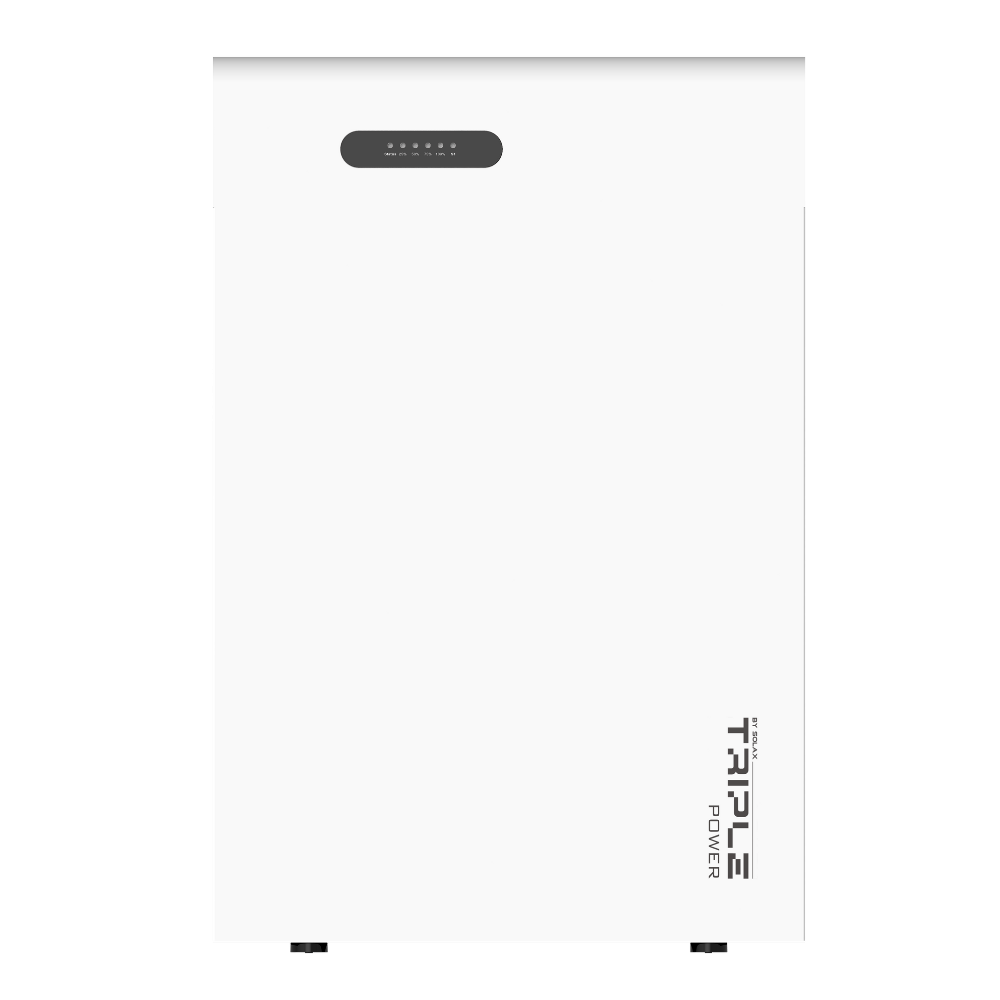

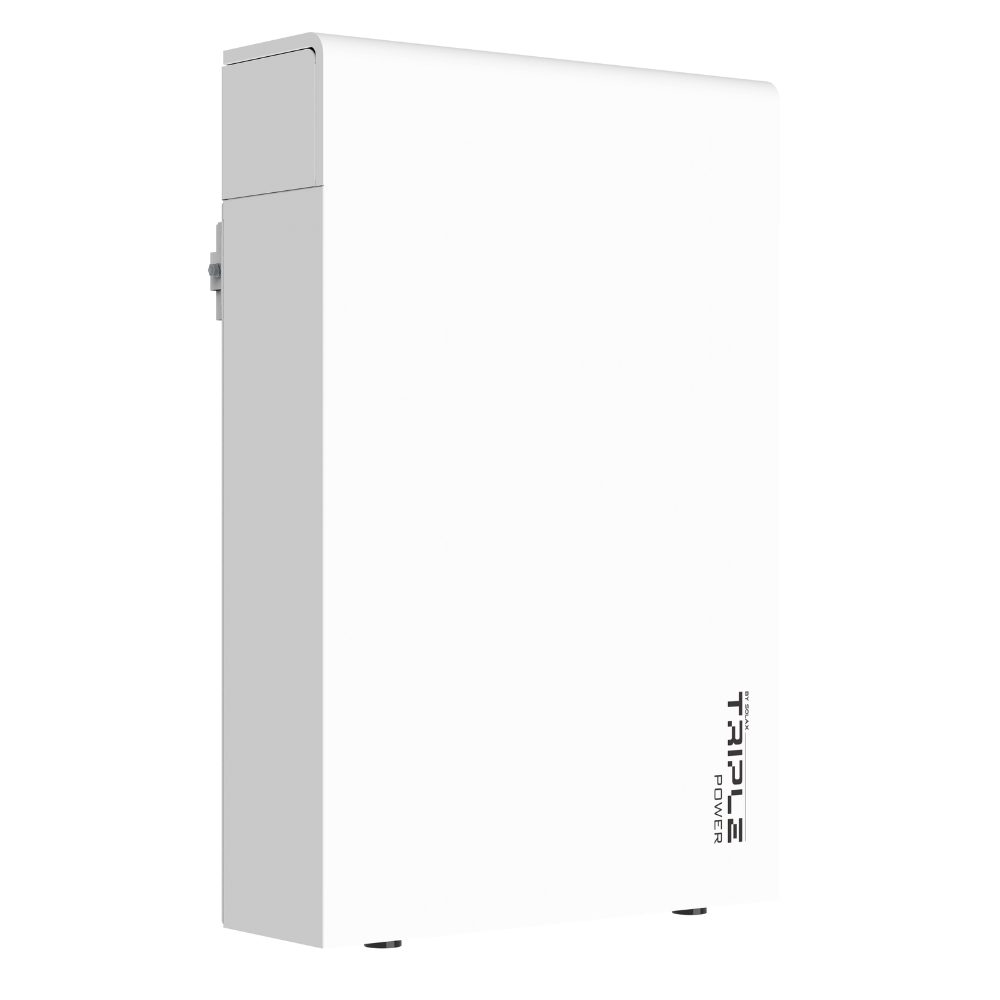

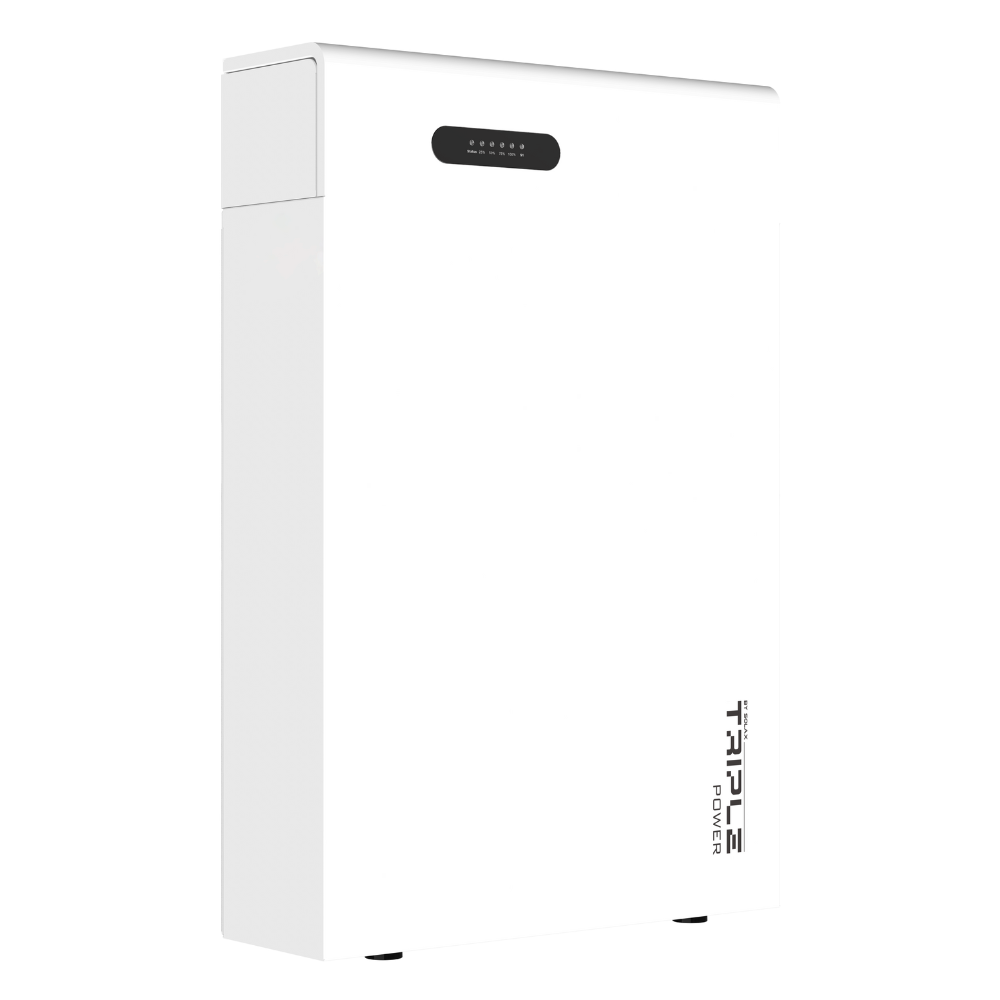

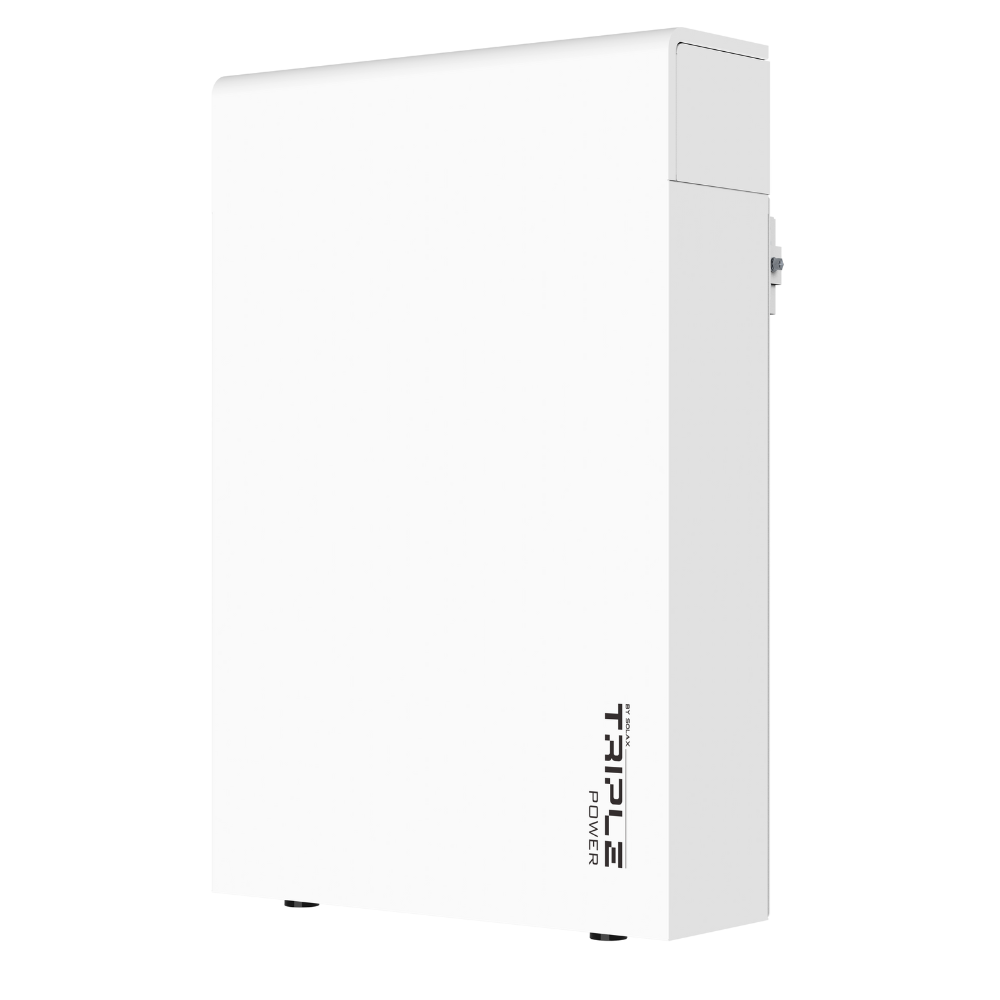

T58
-
5.8-34.6kWh
The T58 offers a flexible installation process with the option to mount the system on the floor or wall, providing convenience for different spaces. Its compact design ensures quick installation and reduced self-consumption, making it an ideal energy storage solution.
-
Guarda il video
Product Advantage
The T58 delivers impressive depth of discharge (DOD) of up to 90% and a cycle life exceeding 6000 cycles. With an IP66 protection rating, it guarantees reliable operation in harsh conditions, while remaining eco-friendly with no toxic heavy metals or caustic materials.
High Performance
Max expandable to 6 units with 34.6kWh capacity for single cluster: cover more customer usage scenarios* (Inverters with two battery ports: Max expandable to 12 units with 69.1kWh capacity)
95�pth of Discharge (DOD)：Delivers more usable energy over its lifetime
Cycle life> 6000 cycles: Ultra-long lifespan, ensuring consistent performance and long-term reliability
Flexible Heating: The T58-V3 features flexible two-level battery heating, designed to meet diverse user needs for optional performance
Assured Reliability
Aerosol fire suppression for precise protection
lP66 Ingress protection
No toxic heavy metals or caustic materials
LFP battery cell & high-performance processors
Smart Management
Remote fault diagnosis, upgrade and maintenance：Rapid issue identification
Flexible Adaptability
Floor or wall mounting optional: fits multiple installation scenarios
Product Parameters
-
T58 V3
-

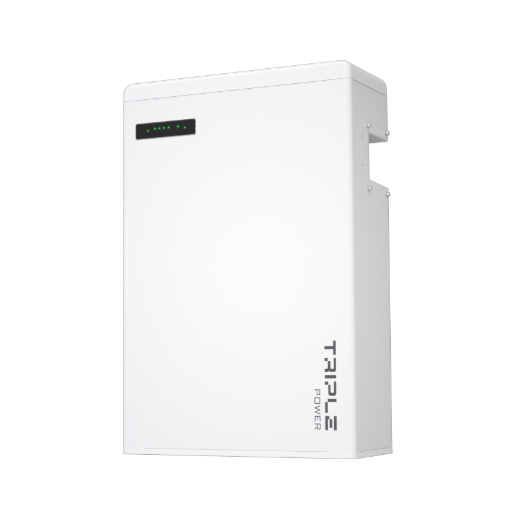

T58 V2
-
T-BAT H 5.8 V3/ T-BAT H 5.8H V3-
GENERAL
Nominal voltage 115.2 V Nominal energy 5.8 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 11.5 V3/ T-BAT H 11.5H V3-
GENERAL
Nominal voltage 230.4 V Nominal energy 11.5 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 17.3 V3/ T-BAT H 17.3H V3-
GENERAL
Nominal voltage 345.6 V Nominal energy 17.3 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 23.0 V3/ T-BAT H 23.0H V3-
GENERAL
Nominal voltage 460.8 V Nominal energy 23.0 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 28.8 V3/ T-BAT H 28.8H V3-
GENERAL
Nominal voltage 576 V Nominal energy 28.8 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 34.6 V3/ T-BAT H 34.6H V3-
GENERAL
Nominal voltage 691.2 V Nominal energy 34.6 kWh Dimensions (W x H x D)
BATTERY MODULE (BMS+PACK)
474 x 715 x 150 mm
Weight
BATTERY MODULE (BMS+PACK)
61.5 (±1) kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP66 Hazardous materials classification Class 9
-
-
T-BAT H 5.8 / T-BAT H 5.8 V2-
GENERAL
Nominal voltage 115.2 V Total capacity 5.8 kWh Dimensions (L ×W × H)
474 × 193 × 708 mm
Weight
72.2 kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 11.5 / T-BAT H 11.5 V2-
GENERAL
Nominal voltage 230.4 V Total capacity 11.5 kWh Dimensions (L ×W × H)
474 × 193 × 708 mm + 474 × 193 × 647 mm
Weight
72.2 kg + 68.5 kg
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 17.3 / T-BAT H 17.3 V2-
GENERAL
Nominal voltage 345.6 V Total capacity 17.3 kWh Dimensions (L ×W × H)
474 × 193 × 708 mm + (474 × 193 × 647 mm) × 2
Weight
72.2 kg + 68.5 kg × 2
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 23 / T-BAT H 23 V2-
GENERAL
Nominal voltage 460.8 V Total capacity 23.0 kWh Dimensions (L ×W × H)
474 × 193 × 708 mm + (474 × 193 × 647 mm) × 3
Weight
72.2 kg + 68.5 kg × 3
-
BATTERY MODULE
Battery type LFP Max. charge / discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
