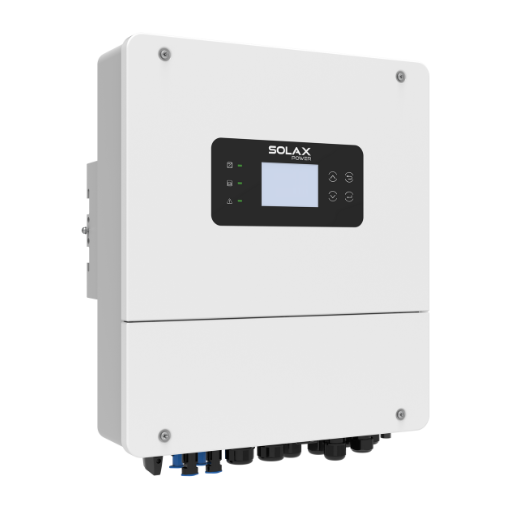

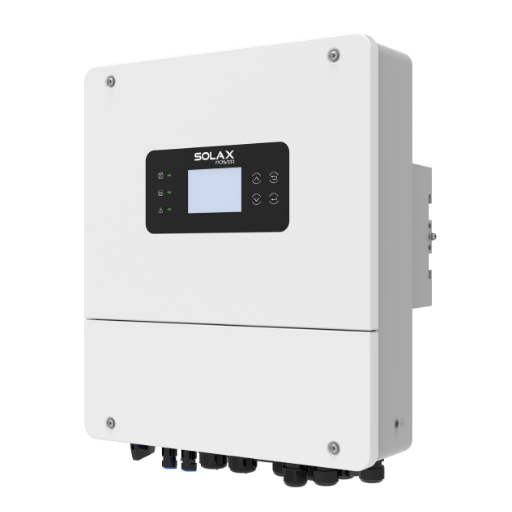

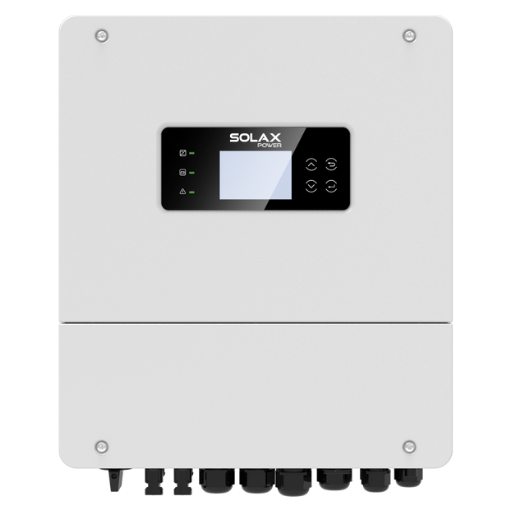

Hybrid Inverter
X1-HYB LV
-
3.0kW / 3.7kW / 4.0kW / 4.6kW / 5.0kW / 6.0kW
The X1-Hybrid LV series, available from 3kW to 6kW, combines a user-friendly LCD screen to meet modern residential energy needs. The inverter also features easy generator and microgrid integration, making it an ideal choice for a wide range of hybrid solar applications.
Product Advantage
The X1-Hybrid LV series, available from 3kW to 6kW, combines a user-friendly LCD screen to meet modern residential energy needs. The inverter also features easy generator and microgrid integration, making it an ideal choice for a wide range of hybrid solar applications.
Smart Management
Single unit UPS-level switchover time < 4 ms
Global MPP scan for optimal energy harvest*(Feature to be upgraded in the future)
Smart loads management
High Performance
200% PV oversizing and up to 110% AC output
200% peak EPS power for 10 s
Max. 120A charging / discharging current
Low start-up voltage for longer operation
Assured Reliability
Battery terminal temperature detection
IP65 protection degree
Type II SPD on AC&DC side
Optional AFCI protection*
Flexible Adaptability
Max. 3pcs parallel for on-grid and off-grid*
Microgrid and generator function for versatile operations* (Feature to be upgraded in the
future)Max. 16A DC input current for high-power solar panel
Product Parameters
-
X1-HYB-3.0-LV-
PV INPUT
Max. recommended PV array power 6000 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT(ON-GRID)
Rated output power 3000 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 6000 VA, 10 s Switchover time <4 ms -
GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 17.3 kg
-
-
X1-HYB-3.7-LV
-
PV INPUT
Max. recommended PV array power 7360 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT(ON-GRID)
Rated output power 3680 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 8000 VA, 10 s Switchover time <4 ms -
GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 16.5 kg
-
-
X1-HYB-4.0-LV
-
PV INPUT
Max. recommended PV array power 8000 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT(ON-GRID)
Rated output power 4000 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 8000 VA, 10 s Switchover time <4 ms -
GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 16.5 kg
-
-
X1-HYB-5.0-LV
-
PV INPUT
Max. recommended PV array power 10000 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT(ON-GRID)
Rated output power 5000 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 10000 VA, 10 s Switchover time <4 ms -
GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 17.3 kg
-
-
X1-HYB-6.0-LV
-
PV INPUT
Max. recommended PV array power 12000 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT(ON-GRID)
Rated output power 6000 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 12000 VA, 10 s Switchover time <4 ms -
GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 17.3 kg
-
