Monitoring Device

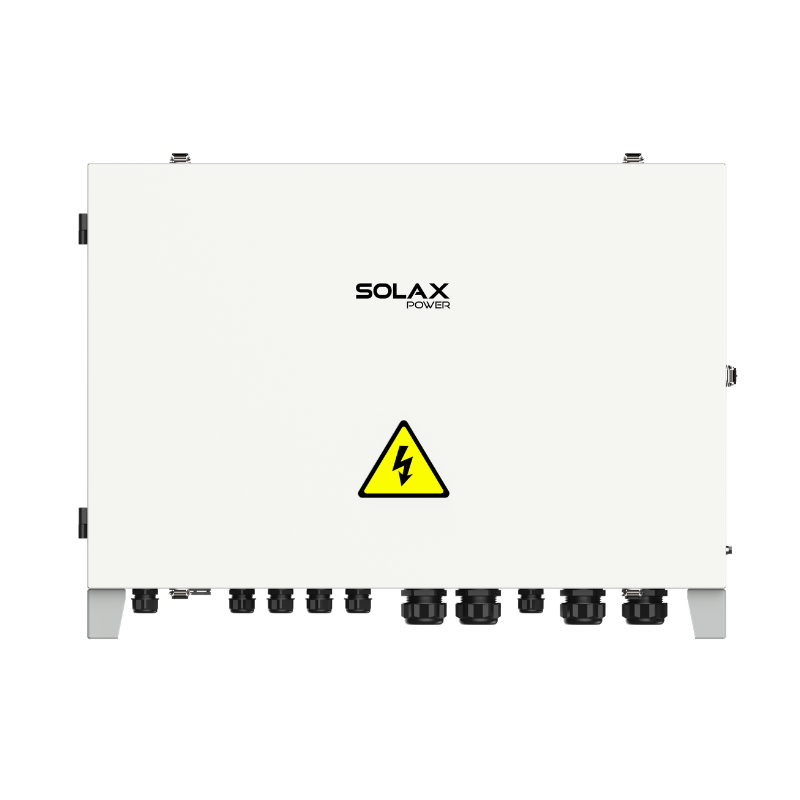

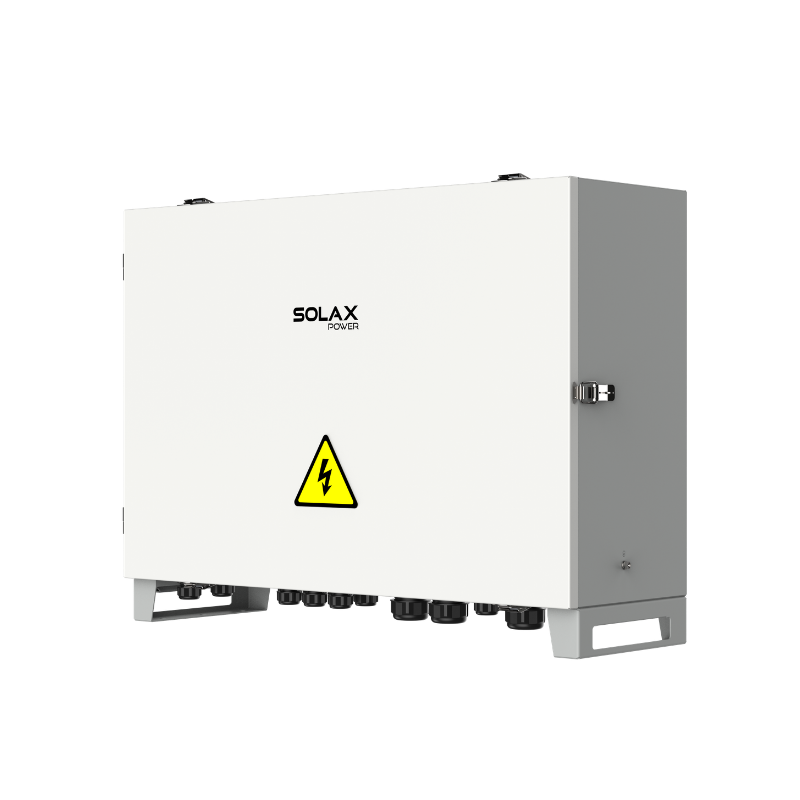

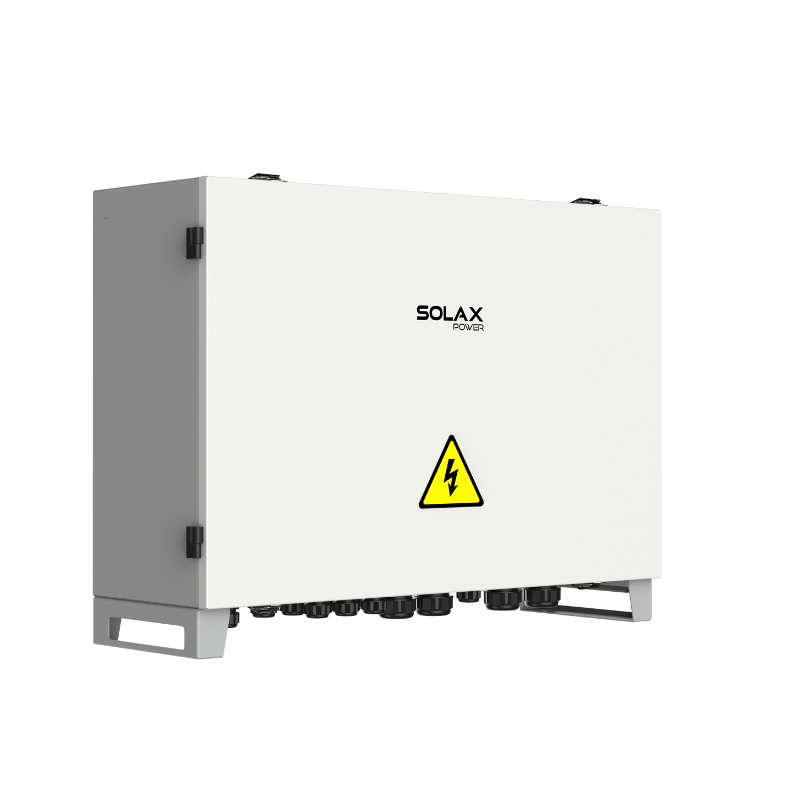

XCB800A

Accessories

Leveraging Broadband HPLC 2.0 high-speed communication technology, the XCB800A enables long-distance and stable transmission while supporting up to 140 devices per network. Each PLC channel offers a maximum communication distance of ≤ 1000 meters and supports up to 60 devices, ensuring reliable performance in large-scale power stations. The device features 6 RS485 interfaces, 4 Ethernet ports, and an optional fiber switch with 2*1000 Mbps fiber ports and 6*10/100/1000 Mbps Ethernet ports. With a rated voltage of 400–800 Vac and a maximum withstand voltage of ≤ 1000 Vac, it guarantees real-time and stable data interaction under complex grid conditions.

Download

Product Advantage

XCB800A operates reliably in extreme environments, with an operating temperature range of -30°C to 60°C and storage temperature from -40°C to 70°C. It endures relative humidity up to 100% RH (condensing) and functions at altitudes up to 4000 meters. The device is rated IP66 for ingress protection, consumes ≤ 50 W of power, and has a net weight of ≤ 45 kg with dimensions of 840 × 615 × 270 mm. It supports wall or floor mounting and is compatible with various outdoor UV-protected cables. With remote management and upgrade capabilities, the XCB800A significantly reduces operational and maintenance costs.

General

Broadband HPLC 2.0 high-speed communication
Support long-distance communication
Easy maintenance, remote management and upgrades, reducing costs

Product Parameters

XCB800A

XCB800A

MECHANICAL PARAMETERS

Dimensions (W × H × D)	840 × 615 × 270 mm
Net weight	≤ 45 kg
Installation type	Wall / Floor mounting
Configuration	The XCB800A includes Data Acquisition Unit, AC adapter, SPD, MCCB, PLC, fiber switch (optional)
